Technical specifications are available on RIBA NBS Plus and NBS Create for rapid import.
ƒn @Operating Load: 9 Hz Floor Finish: Concrete
ƒn @Dead Load: 11 Hz Live Load: 5 kN/m2
Height: 165 mm Point Load: 5 kN (min 1000 mm)
Weight: 2.5 kN/m2 Load capacities subject to slab design
Air Gap: 50 mm Warranty: up to 25 Years
CineFLOOR PRO floating slabs can be designed with a fully fibre reinforced concrete to allow easy seat installation without the risk of hitting the rebar.
Self-compacting concrete can also be used to ensure high flatness tolerance is achieved to allow vinyl or carpet to be laid directly on top of it.
Contact Farrat Technical for further advice and information regarding floating slab design.
Performance Test Data
Rw: 75 dB ΔLw: 36 dB
Fire Resistance Duration: 90 mins
Acoustic (Airborne): ISO 10140-1,2,4:2020 ISO 717-1:2013
Acoustic (Impact): ISO 10140-1,3:2010 ISO 717-2:2013
Based on 140 mm structural slab, no ceiling.
Fire: EN 1994-1-2:2010
Based on 160 mm MD05-V3 Composite Deck in a multi span configuration.
CineFLOOR PRO products have a 1-day lead time.
We hold stock in the UK, the UAE and Saudi Arabia and regularly export worldwide.
Our team of engineers are always on hand to offer advice relating to specification, detailing and installation.
We can deliver this remotely or on-site, anywhere in the world.
All Farrat CineFLOOR PRO systems are designed and manufactured with ease of installation, durability and follow-on trades in mind.
No operation maintenance is required.
CineFLOOR PRO isolators are manufactured by Farrat in the UK under an accredited ISO 9001:2015 Quality Management System.
Our performance test data is all supplied from UKAS and IPAC accredited laboratories.
We regularly supply CineFLOOR PRO systems to market leading cinema operators.
These include: Cineworld, Vox, VUE, Empire, REEL, Odeon and UCI.
Ordering from Farrat

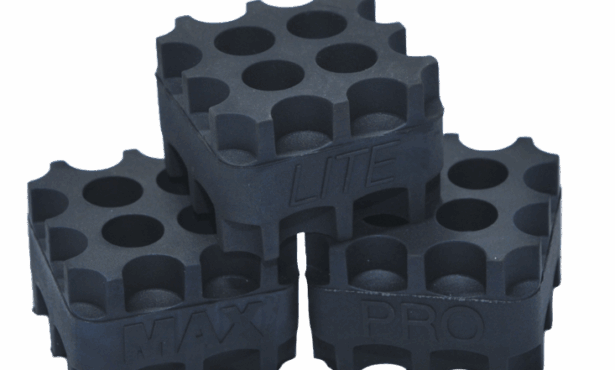

CineFLOOR PRO Floor Isolators
- Product Code: 2CF-P-01
- Measure: Isolators 600 mm cross centres
- Allow 3.4 isolators per m2 (floor area)
- + 0.2 isolators per m2 for non-rectangular shapes
CineFLOOR PRO Perimeter Isolation Strips
- Product Code: 2CF-P-02
- Measure: Strips 2000 mm long
- Allow 0.5 strips per meter
- (Perimeter, including penetrations)
- + 10% off-cuts etc
Contact our Technical Team
Where necessary we can also design bespoke configurations to meet your precise needs. Complete the enquiry form and our Technical Team will be in contact to discuss your project in more detail.
